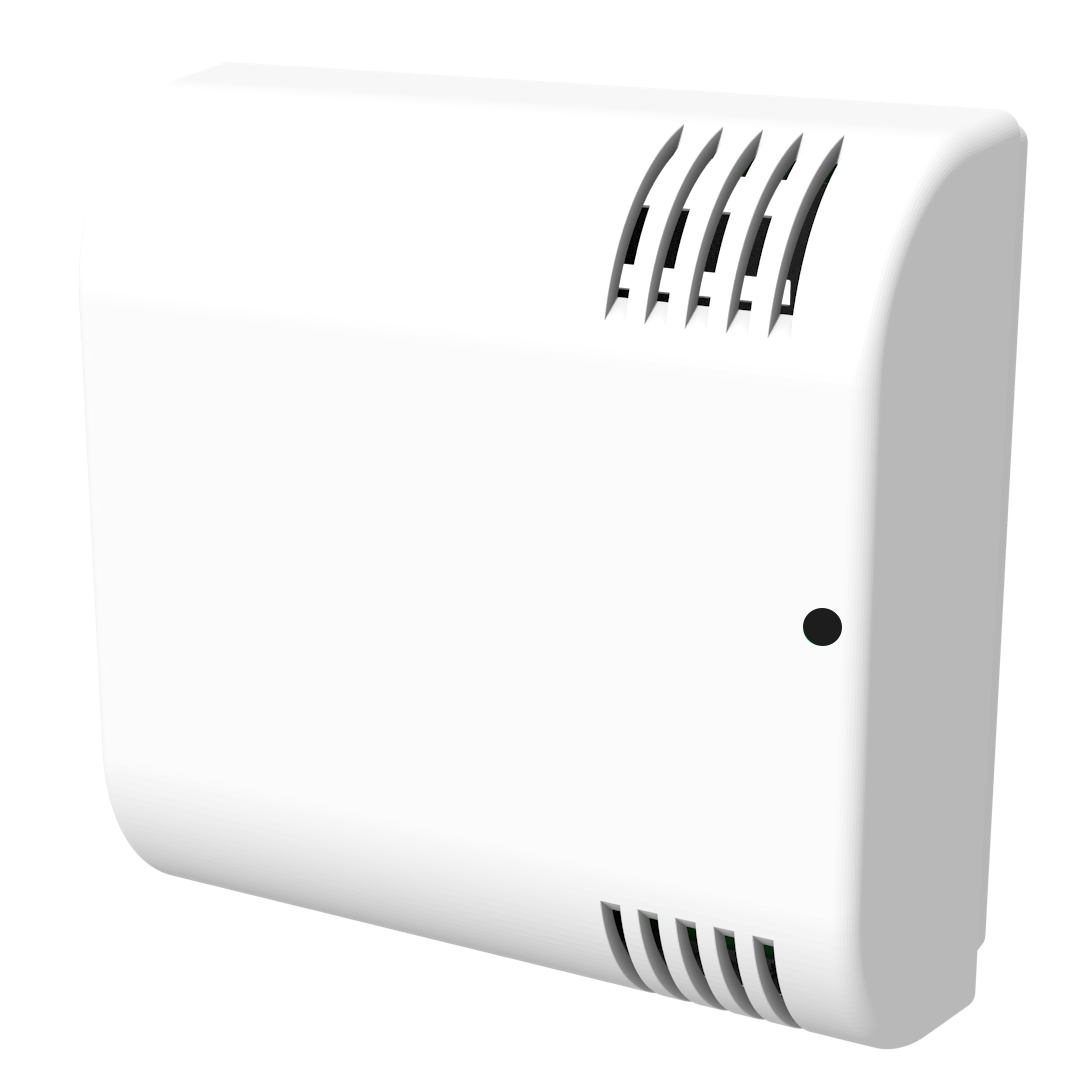

Air quality sensor ACW-THAQ

Comfort & air quality – CO2 / VOC / T°C / RH sensor

The THAQ facilitates the monitoring of your rooms and buildings thanks to its CO2, VOC (volatile organic compounds), temperature and relative humidity sensors. Equipped with a LED on the front panel (Green > Orange > Red) clearly indicating the need to ventilate the room, the air quality is displayed locally or the complete measurements are sent to an operated Sigfox or LoRaWAN network.

Embedded CO2 sensor is qualified Non-Dispersive InfraRed (NDIR).

The configuration is done from the tools of the ATIM suite, either locally or remotely. By default, the thresholds of CO2 rate correspond to the European standard but it is possible to redefine them. These thresholds correspond to the different levels of alarms as well as to the colour of the LED on the front panel. It is also possible to deactivate the front LED if needed.

Installation and start-up is done in less than 10 minutes: Plug & Play.

Commonly used in schools, public places, cities, industry and connected buildings, the ACW-THAQ is suitable for many application cases such as:

  • Classrooms: CO2 sensors will become standard in schools, colleges and high schools
  • Monitoring the CO2 level of a building open to the public
  • Maintaining air quality and comfort in hotel rooms

  • Data acquisition module
    • Connectable to an LPWAN LoRaWAN (868MHz) operated or private network
    • Configuration via USB link (thresholds, cycle time, etc.), software supplied
    • Dedicated for indoor use (Smart Building)
    • Integrated 1/4 wave antenna - 25mW (14dBm)
    • Wall mounting
    • Autonomous power supply via 1 interchangeable 7.2 Ah battery pack.
    • Operating temperatures: -50 ° C to + 125 ° C
    • Wall mounting
    • Low operating cost, low energy consumption
    • Easy installation, rapid deployment
